A workstation designed for all types of anesthesia and mechanical ventilation during surgery and the early postoperative period. It delivers precise anesthetic dosing and real-time respiratory monitoring, including spirometry values.
Kedr K10
Overview
Specifications
| Patients | Adults / children of all ages |
|---|---|
| Display | 12.1" touchscreen / 1024 × 768 / two-axis adjustment |
| Ventilation modes | 10 + dedicated CPR mode |
| Log | Data storage: graphs — 60 hours / tables — 48 hours / events — up to 2,000 |
| Battery life | Up to 3 hours |
| Configuration | In-hospital stationary use |
Features
Key features
- Intuitive menu, leak test with graphic and text prompts
- "Quick start" — one button selects the patient type and loads safe settings and alarm limits
- Pneumatic drive with automatic air/oxygen supply switchover

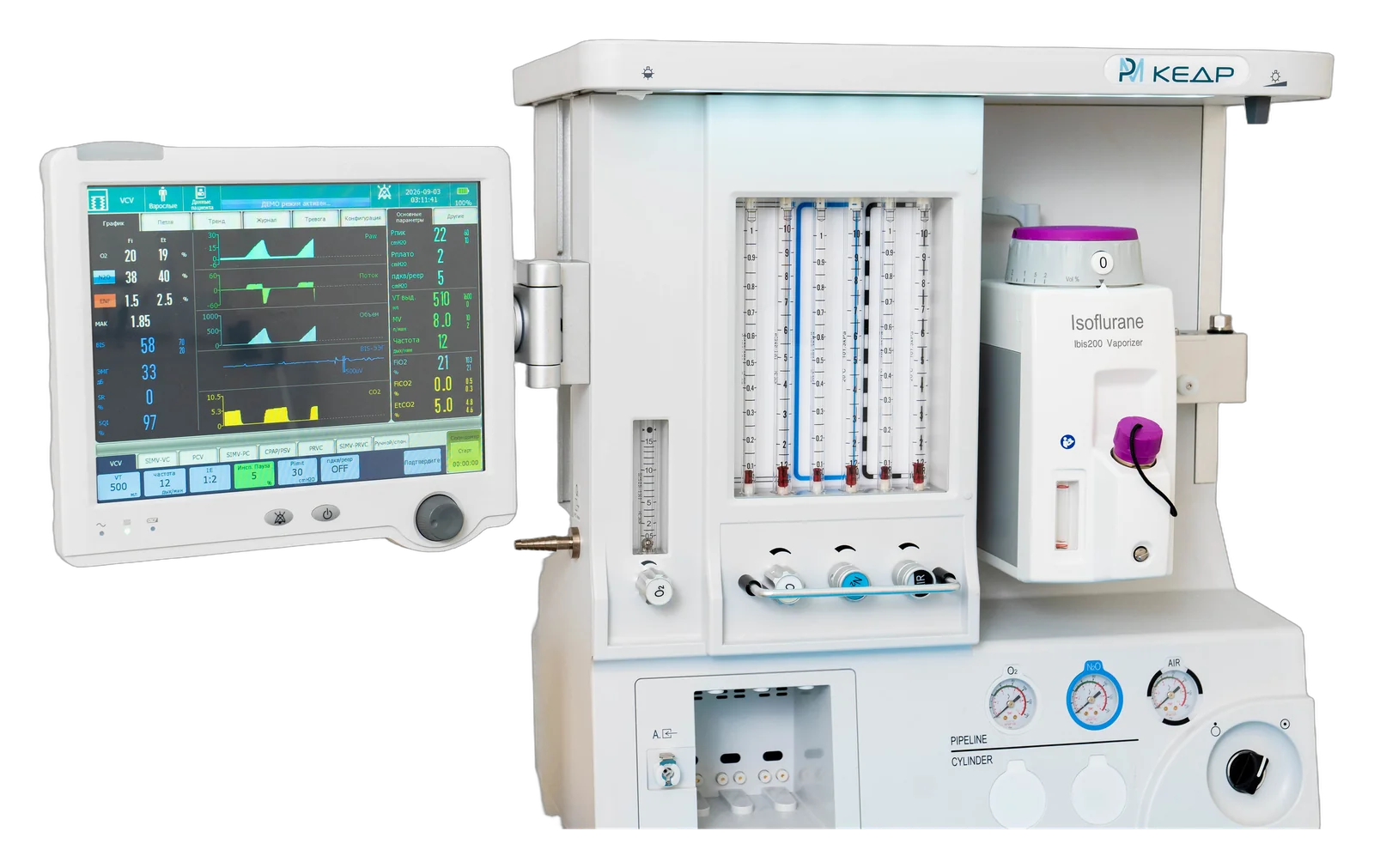

- Reliable float flowmeters, built-in mechanical pressure gauges for the supplied gases
- Autoclavable breathing system assembly, heated, with a condensate drain valve
- Pneumatic flow sensors, 2000 mL absorber
- Mounts for 2 vaporizers
- Open, semi-open and semi-closed rebreathing circuits
- Absorbent replacement while the machine is running, and operation without absorbent
Ventilation modes
- VCV, PCV, CPAP/PSV, PRVC (equivalent to VG, VAPS), SIMVVC, SIMVPC, SIMVPRVC (SIMV VG), SPONT, MANUAL, APNEA
- Dedicated CPR mode with alarm suppression
Ventilation parameters
| Tidal volume | 5–1500 mL |
|---|---|
| Respiratory rate | 4–100 /min |
| I:E ratio | 4:1 to 1:10 |
| Inspiratory time | 0.2–5 s |
| Maximum inspiratory flow | up to 120 L/min |
| Flow trigger | 0.2–15 L/min |
| Pressure trigger | 0–20 cmH₂O |
Ventilation functions
- Inspiratory waveform adjustment
- Automatic circuit leak compensation
- Electronic stopwatch
Monitoring and display
- Up to 5 waveforms or 2 ventilation loops on screen
- Storage of 10 reference loops
Optional modules (activated automatically when installed)
- Capnography or multigas module: sidestream or mainstream
- Multigas module with a paramagnetic sensor — metabolic monitoring
- BIS anesthesia depth module with graphic electrode placement guidance
Safety and alarms
- Alarm system with audible and external color signaling
Accessories and mounting
- Provision for an external pneumatic aspirator and a pneumatic anesthetic gas scavenging regulator
- Mounting points for additional equipment
- Mounts for additional cylinders, shelves, drawers
- Adjustable work-area lighting
- Additional oxygen and air flowmeters for inhalation
- 4 power outlets for additional equipment
