A multifunctional system for anesthetic gas delivery, ventilation in all core modes and patient monitoring. The model is used during surgery and complex invasive procedures in adults and children of all ages.
Kedr K30
Overview
Specifications
| Patients | Adults / children of all ages |
|---|---|
| Display | 15" touchscreen / 1024 × 768 / two-axis adjustment |
| Ventilation modes | 10 + dedicated CPR mode |
| Log | Data storage: graphs — 60 hours / tables — 48 hours / events — up to 2,000 |
| Battery life | Up to 3 hours |
| Configuration | In-hospital stationary use |
Features
Key features

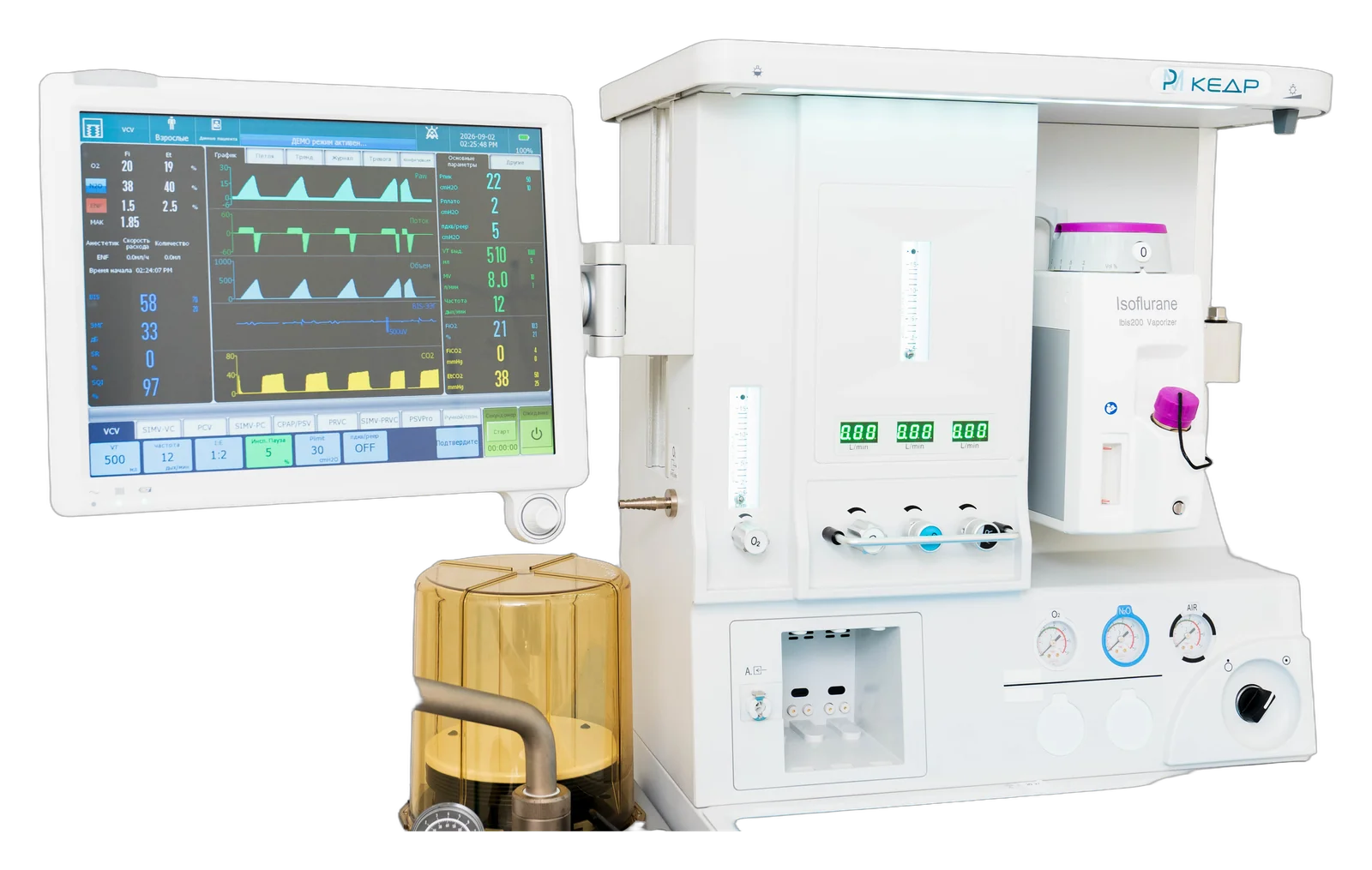

- Electronic gas mixer with a separate control for each supplied gas, plus a total-flow float meter
- Pneumatic drive with automatic air/oxygen supply switchover
- Intuitive menu, leak test with graphic and text prompts
- "Quick start" — one button selects the patient type and loads safe settings and alarm limits
- Built-in mechanical pressure gauges for the supplied gases
- Autoclavable breathing system assembly, heated, with a condensate drain valve
- Pneumatic flow sensors, 2000 mL absorber
- Mounts for 2 vaporizers
- Open, semi-open and semi-closed rebreathing circuits
- Absorbent replacement while the machine is running, and operation without absorbent
Ventilation modes
- VCV, PCV, CPAP/PSV, PRVC (equivalent to VG, VAPS), SIMVVC, SIMVPC, SIMVPRVC (SIMV VG), SPONT, MANUAL, APNEA
- Dedicated CPR mode with alarm suppression
Main ventilation parameters
| Tidal volume | 5–1500 mL |
|---|---|
| Respiratory rate | 4–100 /min |
| I:E ratio | 4:1 to 1:10 |
| Inspiratory time | 0.2–5 s |
| Maximum inspiratory flow | up to 120 L/min |
| Flow trigger | 0.2–15 L/min |
| Pressure trigger | 0–20 cmH₂O |
Ventilation functions
- Inspiratory waveform adjustment
- Automatic circuit leak compensation
- Electronic stopwatch
Monitoring and display
- Up to 5 waveforms or 2 ventilation loops on screen
Optional modules (activated automatically when installed)
- Capnography or multigas module: sidestream or mainstream
- Multigas module — metabolic monitoring
- BIS anesthesia depth module with graphic electrode placement guidance
Safety and alarms
- Alarm system with audible and external color signaling
Accessories and mounting
- Provision for an external pneumatic aspirator and a pneumatic anesthetic gas scavenging regulator
- Mounting points for additional equipment
- Mounts for additional cylinders, shelves, drawers
- Adjustable work-area lighting
- Additional oxygen and air flowmeters for inhalation
- 4 power outlets for additional equipment
- Central brake — one pedal locks the machine in place
